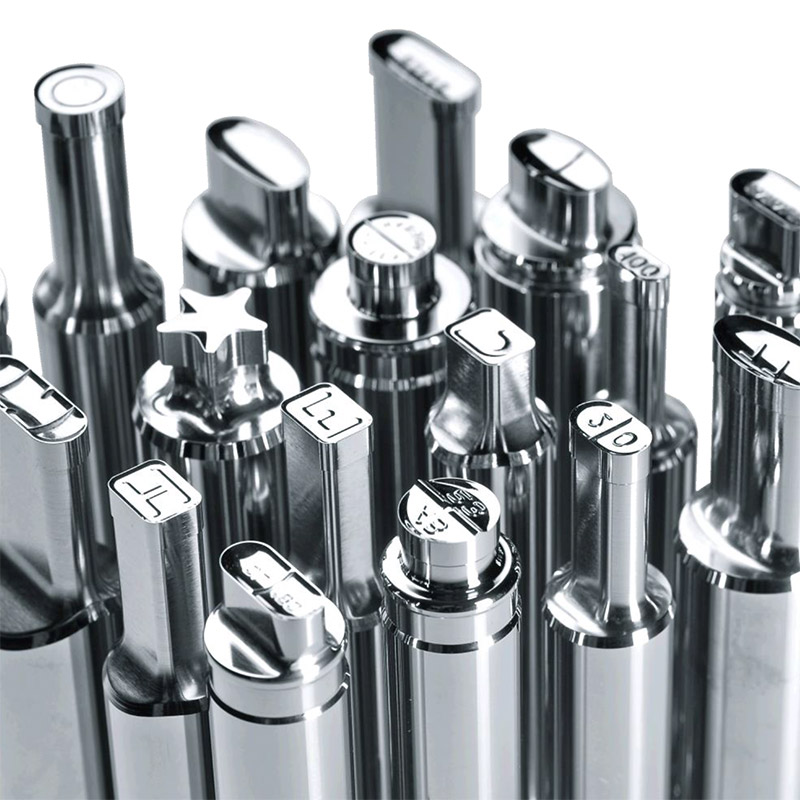

Quality control of medical tablet stamps and dies

According to ISO 18084:2011, the press tools for the tablet production are subject to a continuous quality control. Due to complex geometry and a strongly reflecting surface, automatic inspection of stamps and dies has been difficult. Only the use of a confocal sensor (confocalDT 2451) and an optical micrometer (optoCONTROL 2600) together with a precise movement with 5 degrees of freedom enabled the development of »Ti-1«. Ti-1 is a complex measurement system equipped with a USB interface and special software for the geometric and visual inspection of tools.
